Is Your Garage Door Misbehaving? How to Adjust Alignment and Tension Yourself

A garage door that sags, sticks, or closes unevenly is more than a nuisance; it’s a sign something is out of whack. I will show you how to diagnose and safely correct the two most common culprits: poor alignment and incorrect tension.

This guide will walk you through a complete check-up and adjustment process, covering how to visually inspect and correct track alignment, safely adjust spring tension on a standard extension system, and check for worn rollers or loose hardware that could be causing the problem.

I have personally tuned up hundreds of residential garage doors over the years, using the same straightforward methods I will share here.

Safety First: Your Garage Door Isn’t a Toy

Before you touch a single bolt, you need to respect the power coiled up in your garage door system. Those high-tension springs store enough energy to launch a tool across your garage or cause serious injury. Understanding garage door spring replacement dangers is essential before any DIY attempt. One small misstep can have severe consequences. Garage door springs are the one component I absolutely recommend homeowners leave to professionals if replacement or major adjustment is needed.

Your first move is always to disconnect the garage door opener. Find the red emergency release cord hanging from the opener rail and pull it down. This uncouples the door from the motor. Then, go to your garage’s electrical panel and trip the breaker that powers the opener unit. I physically unplug mine from the wall outlet for good measure. This ensures the motor can’t activate while you’re working.

Next, put on your safety gear. I wear clear safety glasses every time because a snapped cable or flying debris is no joke. A pair of sturdy work gloves, like Mechanix Wear, protects your hands from sharp metal edges. If you need a ladder, make sure it’s on solid, level ground.

Finally, inspect your springs visually. Look for a visible gap in a torsion spring’s coils-a sure sign it’s broken. For extension springs, check for severe rust, stretching, or any fraying in the safety cable running through them. If you see any of these signs, close the door, step back, and call a pro-your job today is diagnosis and minor tweaks only.

How to Diagnose the Real Problem

Misalignment and improper tension cause most garage door headaches, but they feel different. Let’s figure out which one you’re dealing with. Start with a simple test: manually lift your door halfway after disconnecting the opener. That quick check points you toward fixing common garage door problems. The next steps will walk you through how to address them.

If the door feels very heavy and wants to slam shut, your springs likely need more tension or may be failing. If the door lifts easily but then sags to one side, hangs up, or makes a grinding sound, you probably have a track alignment issue.

To check alignment, you need a reliable 4-foot level. Place it vertically against the side of the metal track on both sides of the door. You want the track to be perfectly plumb (vertical) from the floor all the way up to the ceiling. If it’s leaning forward or backward, that’s your problem. Now, check the horizontal track section along the ceiling. Place your level on the bottom edge of the track. It should be perfectly level, like a shelf you’d trust to hold books.

Listen to your door. A constant grinding or squealing noise is often dirty or dry rollers. A loud “pop” or bang suggests a serious spring or cable issue. If the door opens or closes only partway and reverses, that’s usually a limit switch setting on the opener, not a tension problem.

The Gearhead’s Checklist

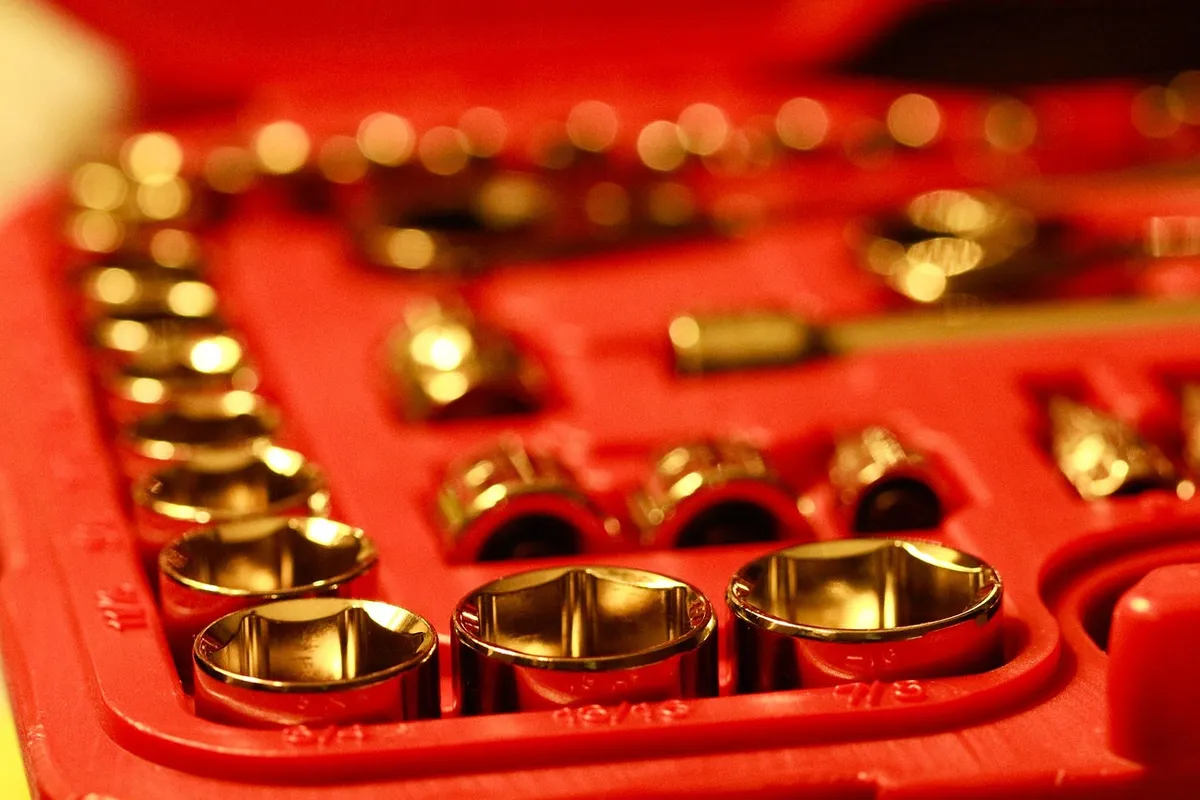

You don’t need a fancy toolbox for basic adjustments. Here’s exactly what I grab from my workbench:

• A 4-foot level. A sturdy aluminum one from Johnson Level works great.
• Two adjustable wrenches. I prefer Channellock because the jaws stay parallel and grip well.
• A socket set, usually 1/2-inch drive, for the track bolts (often 7/16″ or 1/2″).
• A sturdy stepladder, like a Little Giant.
• A silicone-based spray lubricant for the rollers and hinges. I avoid WD-40 for this; it attracts dirt.
• A simple household cleaner and rag for wiping down the tracks.

Note that adjusting torsion spring tension requires special steel winding bars—this is not a job for screwdrivers or makeshift tools and is best left to a technician. If your diagnosis points to a spring issue, your tool list should only have one item: your phone to call a trusted garage door service, especially for adjusting the tension on garage door springs.

Fixing a Misaligned or Sagging Door Track

If your door is scraping, sticking, or looks crooked, the metal tracks guiding it are usually the culprit. A track out of alignment acts like a bent rail for a train, causing friction and uneven movement. Adjusting it is straightforward with the right steps.

How to Adjust the Door Side-to-Side

Lateral misalignment means the track is too close or too far from the door on one side. You fix this by shifting the track itself.

1. Disconnect the Opener: Pull the red emergency release cord on your opener trolley. This lets you move the door by hand without the motor fighting you.
2. Loosen the Brackets: Using a socket wrench or a sturdy adjustable wrench, slightly loosen the bolts that secure the vertical track section to the wall brackets. Do not remove them completely; just enough so the track can shift a little.
3. Tap it into Place: With the door closed, place a rubber mallet against the track near a loosened bracket. A few gentle but firm taps can move it closer to or farther from the door. I use a Tekton mallet because the solid rubber head moves metal without damaging it. Check the gap between the door’s rollers and the track-you want it to be even and about the thickness of a dime.
4. Re-tighten Everything: Once the gap is consistent, hold the track in place and fully tighten the bracket bolts. Work your way up the vertical section, checking the gap as you go.

This adjustment often solves a door that scrapes on one side or feels lopsided when you lift it.

Checking and Fixing Track Plumb

“Plumb” means perfectly vertical. A track that leans forward or backward will cause the door to bind. To check this, I use a 4-foot Craftsman level because its long, rigid frame gives an accurate reading on the tall track.

1. Place the level against the face of the vertical track section.
2. Check the bubble. If it’s not centered, the track is out of plumb.
3. Loosen the same wall bracket bolts you did for the side-to-side adjustment.
4. You may need to place thin metal shims (like large washers) between the wall bracket and the wall to push the top or bottom of the track forward or back. I keep a box of large fender washers in my truck specifically for this job.
5. Re-tighten the bolts with the level held in place, ensuring the bubble stays centered.

Clean the Tracks First

Before you adjust anything, always clean the tracks. Years of dust, dead bugs, and old grease build up and cause sticking. I use a shop vacuum with a crevice tool to suck out debris, then wipe the inside of the track rails with a rag and a mild cleaner like Simple Green. Avoid oily lubricants here, as they just attract more gunk.

When a Bent Track Means Calling a Pro

If you see a visible kink, dent, or sharp bend in the steel track, stop. A bent track cannot be safely hammered straight by hand; the metal is hardened and you will weaken it. Trying to force it can cause a roller to jump the track while the door is moving, which is a major hazard. This is not a DIY repair. A professional has the tools and a spare section of track to replace the damaged part correctly.

Adjusting Garage Door Spring Tension (The Careful Way)

The springs counterbalance the door’s weight. If the tension is wrong, your opener strains, the door won’t stay put, or it slams shut. Understanding how garage door springs function helps explain why proper tension matters. There are two main types, and you only touch one of them.

Identifying Your Spring Type

Look above your closed garage door. Do you see a horizontal steel bar (a torsion tube) running from one side to the other with a coiled spring around it? That’s a torsion spring system. If you see two long springs running parallel to the horizontal tracks above the door, those are extension springs. This distinction is your most important safety check.

How to Safely Adjust Extension Spring Tension

Extension springs stretch to provide lift. Their tension is adjusted by changing their starting length using an S-hook and a series of holes on the track hanger.

1. Secure the Door: Fully close the door. Place C-clamps or locking pliers on the track just below the bottom rollers on both sides. This prevents the door from flying up if a spring is suddenly disconnected.
2. Locate the S-hook: At the rear of the horizontal track, you’ll find the spring connected to a stationary bracket by an S-shaped metal hook.
3. Move the Hook: Using a pair of vise-grips to hold the hook, unhook it from its current hole on the bracket. If the door is too heavy (hard to lift manually), move the hook to a hole closer to the front of the garage. This gives the spring less initial stretch, reducing tension. If the door doesn’t close fully or reverses, move the hook to a hole farther from the front, increasing tension.
4. The Balance Test: Remove your safety clamps. Disconnect the opener and lift the door manually to about halfway up. Let go. A properly balanced door will stay in place, not drift up or slam down. If it moves, you need another small adjustment.

I keep a set of Irwin Vise-Grip locking pliers in my kit for this hook work; their positive lock keeps a solid grip on the slippery steel hook.

The Critical “When NOT to Try This” Point: Torsion Springs

If you have torsion springs (the bar and coil above the door), your work is done. Put your tools away.

Torsion springs are under extreme rotational tension-enough force to break bones, cause severe laceration, or worse. Adjusting them requires winding rods inserted into precise holes on the spring cone to safely add or remove tension from the steel cable drum. One slip of a tool can release that stored energy violently and unpredictably.

I have the specialized winding bars and training to do it, and I still approach every torsion spring job with focused caution. For a homeowner, there is no safe “quick adjustment.” If your door with torsion springs is out of balance, the only correct call is to a licensed garage door technician. This is not a place to save money or test your DIY skills—even if you’re tempted to adjust the springs yourself.

Calibrating the Opener for an Even Close

If your door is sagging or not sealing, the opener’s settings are often the first place to look. The motor has internal controls for how far it travels and how much pressure it applies. Getting these right ensures the door closes flat against the floor every time.

First, locate the adjustment screws on your opener unit. On most models from brands like LiftMaster or Chamberlain, you’ll find them on the back or side panel. Look for small screws with labels like “LIMIT” (sometimes with “Up” and “Down” arrows) and “FORCE.” They are typically Phillips head or flathead screws you turn with a standard screwdriver.

Adjusting the Down Limit

This setting tells the door exactly where to stop. If it stops too high, you get a gap. If it drives too hard into the floor, it can strain the motor.

1. With the door open, press the wall button to close it.
2. As it descends, watch where it naturally wants to stop. You want the rubber bottom seal to compress slightly on the concrete.
3. Find the “Down Limit” or “Close Limit” screw. Turn it a quarter-turn clockwise. This usually makes the door travel a little farther down.
4. Run the opener again. Repeat the small adjustment until the door closes fully and evenly across its entire width. The goal is a consistent, light seal with the floor, not a forceful slam.

Setting the Closing Force

Now you need to adjust the power. The force setting controls how hard the motor pushes to complete the close. If it’s too low, the door will reverse when it hits the seal. Too high, and it’s a safety hazard.

1. Locate the “Force” adjustment screw, often near the limit screws.
2. With the door now closing to the correct limit, watch its final motion. If it reverses, the force is too low. Give the screw a small turn clockwise.
3. If it closes fine, test the safety reversal. Place a scrap piece of 2×4 lumber flat on the floor under the center of the door.
4. Close the door. It must stop and reverse immediately upon touching the wood. If it doesn’t, the force is dangerously high. Turn the screw counter-clockwise until it passes this test.

Think of adjusting the force like testing shower water: make tiny changes and test repeatedly until it’s just right. I keep a dedicated flathead screwdriver in my toolbox just for these fine adjustments on opener units.

Does the Garage Door Opener Need to Be Centered?

This is a common mix-up. The opener motor’s physical position on the ceiling isn’t critical for alignment. What must be centered are the safety sensors. Those little plastic boxes on each door track, about six inches off the floor, beam an invisible signal to each other. If that beam is broken by an object (or misalignment), the door won’t close.

If your door is closing unevenly, check the sensors first. Make sure they are pointing directly at each other, their lenses are clean, and the indicator lights (usually green on the receiving sensor) are solid. You can loosen their brackets and gently adjust their aim. The opener itself can be off to the side, as long as the sensors have a clear line of sight.

Maintenance & Cleaning Routine

Preventative care stops most alignment issues before they start. I recommend a simple, twice-a-year routine, like when you change your clocks.

Biannual Check (Spring & Fall):

• Lubricate Moving Parts: Use a dedicated silicone-based spray lubricant. I’ve had good results with WD-40 Specialist Silicone Spray. Avoid grease or heavy oils that attract dirt. Give a short burst onto the rollers, the hinges between door sections, and the lock bar if you have one. Don’t spray the plastic safety sensor lenses.
• Clean the Tracks: Use a damp cloth to wipe out the inside of the metal vertical and horizontal tracks. Look for small dents, grit, or built-up grime that can derail a roller. A clean track is a smooth track.
• Visual Inspection: With the door closed, look at the high-tension springs (either above the door or on the sides) and the lifting cables. You’re looking for gaps in the springs or fraying on the cables. Do not touch, adjust, or lubricate the springs or cables yourself; the stored energy is extremely dangerous. Just look for obvious signs of wear.

Monthly Safety Test:

Your opener has an auto-reverse safety feature required by code. Test it every month to ensure it works. Take that same 2×4 block of wood and lay it flat on the floor under the door’s path. Close the door. It must stop and reverse the moment it touches the wood. If it doesn’t, your force settings are wrong or the system is faulty. Do not use the door until it passes this test.

Professional Tune-Up:

Even with great DIY care, have a certified technician inspect and tune the entire system every two to three years. They check things homeowners shouldn’t, like spring tension and cable wear, with the right tools and training. I consider it cheap insurance. It catches small problems, like a worn roller about to fail, that you might miss and which can lead to a crooked door or a complete breakdown.

Garage Care Pro FAQ: Your Quick-Fire Questions Answered

How can I tell if my torsion spring is broken without touching it?

Visually inspect the spring coil above your door for a noticeable gap separating the coils-it will look like a space in the middle of the spring. Also, look for severe rust or a loose, hanging lifting cable. If you see any of these signs, do not operate the door; the spring has failed and requires immediate professional replacement.

My door still sticks after I’ve cleaned and aligned the tracks. What’s next?

Your rollers or hinges are likely worn or damaged. Manually lift the door and watch each roller as it moves through the track, looking for wobble or grinding. Worn nylon rollers or damaged hinge brackets create friction and must be replaced to restore smooth operation.

I adjusted the extension spring S-hook, but the door is still unbalanced. What now?

The springs themselves are likely fatigued and have lost their lifting capacity. Extension springs have a finite lifespan. If moving the hook through all adjustment holes doesn’t achieve a proper balance where the door holds at halfway, the springs need to be replaced as a matched pair by a technician.

I’ve tweaked the opener’s limit switches, but the door still closes unevenly. Why?

The problem is likely mechanical, not electronic. Re-check the levelness of the horizontal track with your 4-foot level. More often, the bottom door section itself is bent or twisted from an impact, preventing a uniform seal. Inspect the bottom panel for damage.

How can I quickly tell if my problem is a simple fix or requires a pro?

If the issue is track alignment, loose bolts, dirty rollers, or opener settings, you can likely handle it. The moment your diagnosis points to spring tension (especially torsion), cable fraying, a bent track, or a bent door section, your job is to call a professional. Know your limits.

Making Adjustments Work For You

The single most important rule is to stop and call a professional the moment you feel unsafe or uncertain. A well-tuned garage door is quiet, smooth, and balanced. Remember these key points every time you work on it:

• Your personal safety is the priority. Never work under a supported door.
• Small, quarter-turn adjustments are how you dial in tension and alignment without causing damage.
• Regularly checking balance and lubricating moving parts prevents most common problems.
• Your hands, eyes, and ears are your best diagnostic tools for spotting wear before it becomes a failure.
