What Size Garage Do You Need for a Toy Hauler? A Complete Sizing Guide

Worried your toy hauler won’t fit or you’ll damage your garage? I’ve helped homeowners solve this exact problem with straightforward, shop-tested methods.

This guide will give you actionable steps, covering key measurements for your rig, critical garage door dimensions, interior space for loading gear, and smart layout tips for maintenance.

I base this advice on years of hands-on work fitting trailers and optimizing garage spaces for clients.

Assessing Your Garage Situation

The first step is to look at what you’re working with. Are you trying to fit your toy hauler into an existing garage, or are you planning a new build from the ground up? Your answer changes everything.

If you’re planning a new structure, the question “how big can I build a garage?” is answered by your local zoning office. I never start a plan without calling my town or county’s building department first to ask about two key rules: setback and height restrictions. Setback is how far your building must be from your property lines. Height rules limit how tall the structure can be. I write these numbers down in my project notebook before I even sketch a line.

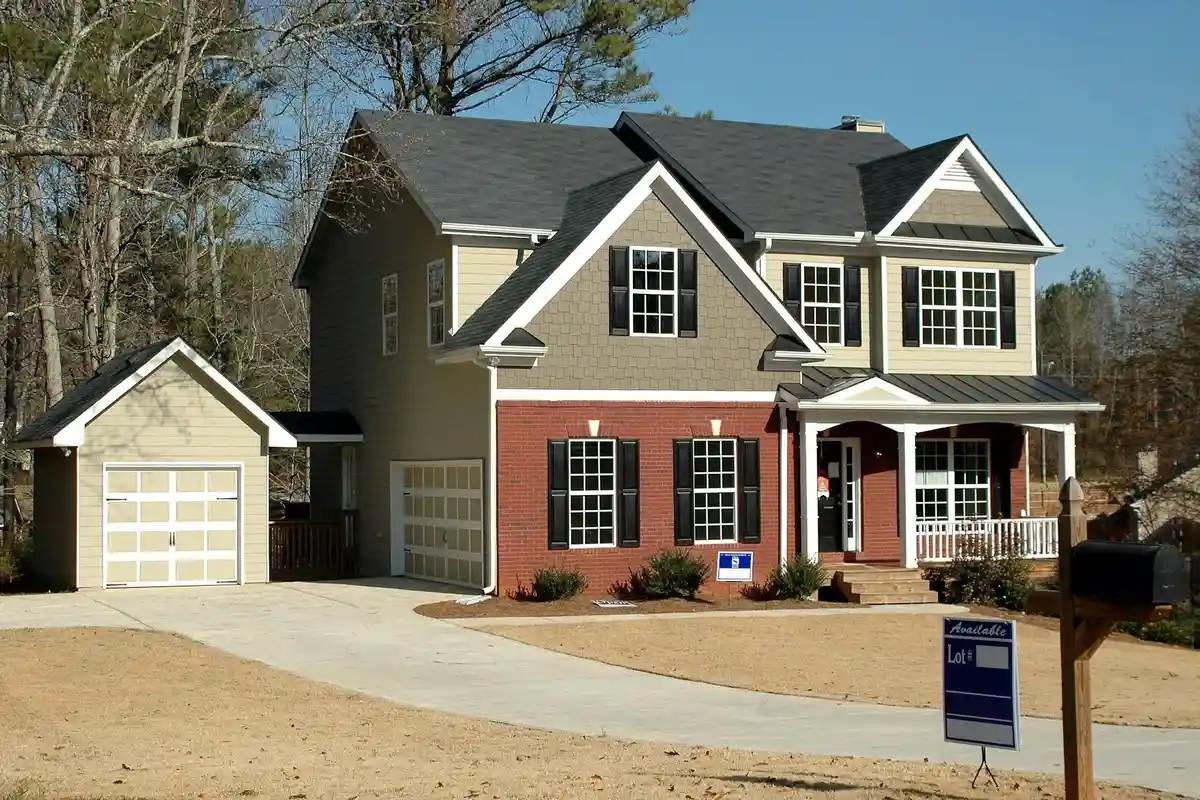

From my experience, a detached garage is almost always the better choice for storing a large toy hauler. You have more flexibility with placement on your lot, and you often face fewer strict fire code restrictions on door sizes and interior finishes compared to a garage attached to your house. It also keeps any fumes or dirt from your gear completely separate from your living space. An attached garage can work, but it usually involves more complex and costly construction to get the large door opening you need.

Here’s my hard-earned advice on when to stop: if your existing garage door opening is more than 6 inches narrower or shorter than your toy hauler’s dimensions, forcing it is a bad and expensive idea. Do not try to “squeeze” it in by removing trim or bending your door tracks. You will damage your vehicle, your garage, and likely yourself.

How to Measure Your Toy Hauler for a Perfect Fit

Guessing here will cost you thousands. You need real numbers. Here’s the toolkit I use on every site visit:

• A 100-foot tape measure (I use a Stanley FatMax).
• A laser level to check for ground slope.
• A simple notepad and pencil.

Follow this method. Do not skip steps.

Step 1: Measure Length. Park your toy hauler on level ground. Measure from the very front of the trailer (often the propane tank box or A-frame) to the very back of the closed rear ramp door. This is your overall length.

Step 2: Measure Width. Measure at the widest point, which is almost always the main body. Do not forget the mirrors if they are not fold-away. If they stick out, include them.

Step 3: Measure Height. This is critical. Measure from the ground to the absolute highest point. This is usually a roof air conditioner unit, a satellite dish, or the roof vent cap. Do not assume the height listed by the manufacturer includes these accessories.

Most toy haulers I see fall into clear ranges. A smaller unit from a brand like Forest River might be 25 feet long and 8.5 feet wide. Larger fifth-wheel models from Keystone can easily hit 40 feet long and 8.5 feet wide. Heights typically range from 11 to 13 feet once you factor in the AC unit.

Let’s answer the common question: what garage do you need for a 40-foot toy hauler? Let’s say your specific rig measures 40′ L x 8.5′ W x 12.5′ H. Here’s how I calculate the minimum garage dimensions:

For that 40-foot example, I would recommend an interior garage size of at least 46 feet long, 14 feet wide, with a door opening at least 10 feet wide and 13.5 feet tall. This gives you room to walk around it and prevents moisture from being trapped against the walls. Keep in mind standard garage door width dimensions as you plan the opening. Most single-car doors are about 8 feet wide, with wider options for larger setups.

Calculating Your Total Garage Space Requirements

I see homeowners make this mistake all the time: they order a garage based purely on their toy hauler’s length and width. It’s a quick way to end up with a space that’s frustrating and potentially unsafe to use. You need to plan for the space *around* the unit. Think of it in three key areas: walking room on the sides, clearance in front of the tow vehicle, and the depth needed for the rear ramp.

The Three-Foot Rule for Safe Access

After parking dozens of different rigs, I have a firm rule I use on every project: I always add a minimum of 3 feet of clear space on each side of the toy hauler and at its rear. This isn’t just a luxury; it’s for safety and basic maintenance. You need this room to open storage compartments fully, check tire pressure, connect/disconnect utilities, and visually inspect the sides and roof for issues.

I learned this the hard way years ago helping a friend try to fix a flat tire on his trailer in a garage that was only 6 inches wider than the rig. We couldn’t get a floor jack positioned properly and had to painfully drag it outside. That 3-foot buffer gives you the space to use tools like my Milwaukee M12 inflator or a standard hydraulic jack safely. It also prevents you from brushing against the garage wall and scuffing your rig.

Accounting for the Rear Ramp and Slope

The ramp is the trickiest part of the calculation. You can’t just use the ramp’s listed length. You must account for its slope, which is determined by the height of your garage floor above the driveway.

Here’s how I figure it out on site:

1. Measure the exact height from your driveway surface to the top of the garage floor. A standard slab lip is often 4 to 6 inches.
2. Know your toy hauler’s deck height (from the ground to the floor inside). A common deck height is about 3 feet.
3. The ramp must bridge from the deck down to the driveway. A steeper angle is harder to load on and can scrape. For a smooth load, I like to see the ramp extended far enough to create a gentle slope.

For example, with a 3-foot deck and a 4-inch floor lip, the ramp is dropping about 32 inches. If you use an 8-foot ramp, the slope is much more manageable than a 6-foot ramp. Always have the ramp’s extended length on hand and add at least 2 feet of clear driveway space beyond where the ramp touches down for a safe approach. I keep a 4-foot level in my truck to check for slope issues during these planning stages.

Total Depth: More Than Just Parking

Garage depth is the biggest place to add value. Your total depth needs to be: Tow Vehicle Length + Toy Hauler Length + Interior Clearance Space. It’s also crucial to consider pit depth requirements for any in-floor storage or maintenance pits you plan to install.

• Tow Vehicle Length: Don’t forget the truck or SUV! Measure from the front bumper to the rear, with the hitch attached.
• Interior Clearance: This is the space between your parked truck’s front bumper and the garage wall. You need at least 18-24 inches here to comfortably get in and out of the truck’s doors. Any less, and you’ll be squeezing out.

But here’s the pro tip: that space in front of your parked truck is prime real estate. I design this zone for gear storage. You can install shallow-depth shelving units (like the Gladiator 18-inch deep shelves) or a workbench here. This keeps the floor clear along the sides of your toy hauler for safe walking.

Use your toy hauler’s dimensions as a starting point, then add these minimums.

Choosing the Right Garage Door and Height

Forget width for a moment. The single most critical measurement for your toy hauler garage is the door height, and getting this wrong is the most expensive mistake you can make. You can often maneuver a wide trailer through a standard door, but if it’s too tall, you’re simply stuck. That’s exactly when rv garage door dimensions sizing requirements come into play. Knowing these specs early can help you plan a doorway that fits without costly retrofits.

The Golden Rule of Clearance

The math is simple, but you must be precise. Don’t guess. Go outside with a tape measure and get the exact height of your fully-loaded toy hauler. This includes any roof-mounted AC units, satellite dishes, or aftermarket vents.

Once you have that number, you must add clearance.

• Absolute Minimum: Hauler Height + 12 inches
• Recommended Safe Clearance: Hauler Height + 18 inches

I insist on the 18-inch rule for my clients. That extra half-foot gives you a comfortable buffer for slightly uneven pavement, worn trailer tires, or the natural bounce of the unit as you drive in. It’s the difference between a clean entry and a heart-stopping scrape that costs thousands to repair.

Standard Doors vs. Toy Hauler Reality

This is where homeowners get their first reality check. A typical suburban garage door is 7 or 8 feet tall. That’s perfect for your SUV. But the real test is the opening itself. Measure your garage opening to ensure the door will fit.

Most toy haulers, even smaller models, are over 10 feet tall. Fifth wheels and larger units easily reach 13 to 14 feet. You are now shopping for a commercial-grade opening, not a residential one. The standard heights you’ll be looking at start at 10 feet and go up to 14 feet or more. Your builder needs to frame for this from the start.

Sectional Door or Commercial Roll-Up?

You have two main paths here, and I’ve installed both for clients with different budgets and needs.

The Standard Sectional Door (Heavy-Duty Residential)

This is what most people picture: horizontal panels that hinge and roll up. For a toy hauler, you cannot use a basic builder-grade door. You need one with a thicker gauge steel frame (I prefer 2-inch thick, 25-gauge steel panels), a high cycle count for frequent use, and heavy-duty hinges and rollers. Brands like Clopay and Raynor make excellent “high-lift” residential doors for this purpose. This is often the most cost-effective route for a dedicated home shop, and with proper maintenance, it will last for years.

The Commercial-Style Roll-Up Door

This is what you see on warehouses. It’s a single curtain of steel that coils above the opening. I installed a Janus International 14-foot tall by 12-foot wide model for a client last year, and it’s a beast. The pros are immense durability, zero headroom space needed inside the garage (it all coils tightly), and often better wind ratings. The con is cost-it’s typically 50-100% more expensive than a high-end sectional door. If your build has the budget and you plan on using the garage as a true workshop with high bays, this is the premium, “set-it-and-forget-it” choice.

Don’t Forget the Opener

Your standard 1/2 HP chain-drive opener from the big box store won’t cut it. The taller, heavier door requires more power and a longer rail. You need to look at three things:

1. Motor Power: A 3/4 HP or 1 HP DC motor is the new minimum. The Chamberlain B4613T I often install has plenty of torque for a large insulated door.
2. Rail Length: The opener rail must be long enough for the door’s full travel height. Measure twice, order once.
3. Safety Systems: Ensure the photo-eye sensors are properly aligned for the wider opening, and confirm the force settings are adjusted by a professional. An improperly set opener on a door this size is dangerous.

Talk to your door installer about a compatible heavy-duty opener system; bundling them often gets you a better warranty and ensures everything works together seamlessly.

Building a Strong Foundation and Structure

You can have perfect dimensions, but if your garage isn’t built right, it won’t hold up. Let’s start from the ground up.

When you ask how big a garage you can build, your local building code is the real answer. Most areas let you build a detached garage up to 120 or 200 square feet without formal engineered plans. Once you need a space large enough for a toy hauler, you’re well past that limit. You will need a professional engineer’s stamp on your plans, and that’s a good thing. It ensures your structure is safe.

Getting the Foundation Right

The slab is not just a floor. It’s the base that holds everything. A standard 4-inch slab, like you might use for a storage shed, will crack and fail under a toy hauler’s weight. It simply isn’t designed for that kind of point load from the wheels.

My durability verdict is to skip the 4-inch slab entirely and insist on a reinforced 6-inch slab with proper perimeter footings. That upgrade hinges on solid garage foundation footing construction—continuous, properly sized footings under the walls to transfer loads. In the next steps, I’ll outline how to plan and pour those footings to support the 6-inch slab. I’ve seen garages built both ways, and the difference is night and day after a few years. Here’s what that means for your build:

• Thickness: Pour the concrete a full 6 inches thick across the entire pad.
• Reinforcement: Use a grid of 1/2-inch rebar on 18-inch centers, tied together. Some builders use wire mesh, but for this weight, rebar is the right choice.
• Footings: The perimeter of the slab needs to be thicker and deeper. This is a continuous footing, typically 12 inches wide and 12-18 inches deep below the frost line, also reinforced with rebar.
• Concrete Mix: Specify a 3500 PSI mix. Don’t let the contractor talk you into a cheaper 2500 PSI mix just because it’s “for a garage.”

This creates a single, monolithic slab that acts like a solid raft. It resists cracking and shifting, which is critical when you’re rolling 10,000 pounds inside.

Understanding Floor Load (PSF)

Building plans talk about pounds per square foot (PSF). This is the floor’s strength rating. A typical residential garage is built for 50 PSF, which is fine for a couple of family sedans.

A toy hauler changes the math completely. You’re not just storing a vehicle. You’re parking a concentrated, heavy load. The tires of your rig and the toys inside put intense pressure on small areas of the slab. Think of it like standing on a cheap plastic chair versus standing on a solid wood stool. Both hold your weight, but one is built for the pressure.

For a toy hauler garage, you need a live load rating of at least 125 PSF, and I often spec 150 PSF to be safe. This higher rating is achieved through that thicker, reinforced concrete and the engineered footing design. It tells you the floor system is designed to handle the heavier, uneven loads without flexing or failing.

Walls and Roof Structure

The big door and heavy vehicle affect the whole building. A wider door opening means you lose a section of shear wall, which is what keeps the building square against wind and force. Your engineer will compensate for this, often by specifying solid sheathing (like plywood instead of OSB) on the side walls or by adding a structural steel header above the door that’s much beefier than a standard two-by piece of lumber.

Don’t forget about the roof. If you live in an area with snow, the roof load is a major factor. The weight of the snow is calculated in pounds per square foot, just like your floor. A wider garage has a wider roof, which collects more snow. Your roof trusses or rafters need to be designed for this, often using a steeper pitch or closer spacing. I’ve used 2×6 roof members spaced 16 inches on center instead of the typical 2x4s to handle a heavy snow load in a wide-span building.

These aren’t details to gloss over. They are the bones of your garage. Getting them right from the start prevents costly cracks, sagging doors, and structural worries down the road.

Safety, Ventilation, and Security Must-Haves

A garage built for a toy hauler isn’t just a shed. It’s a workshop, a storage locker, and a machinery bay all in one. That means your routine needs to be proactive. Skipping maintenance here can lead to expensive repairs or dangerous situations. Let’s build a simple schedule you can stick to.

Maintenance & Cleaning Routine

Think of this routine in two parts: quick monthly checks and deeper seasonal work. Set a calendar reminder for the first Saturday of the month. It takes 15 minutes and saves you headaches.

Your monthly walkthrough should focus on catching small problems before they grow. With a good LED flashlight, I look for three things:

• Fluid Leaks: Check the floor under the toy hauler and any parked vehicles. A fresh drip of oil, coolant, or fuel is a red flag. I keep a bag of oil-absorbent granules (like Pig Socks) handy for immediate cleanup.
• Tire Pressure: Use a heavy-duty gauge, like one from Milton. Low pressure on a parked toy hauler can create flat spots on the tires.
• Ramp Condition: Inspect the hinges and latches on your toy hauler’s rear ramp for any signs of binding or rust.

Seasonal tasks are about preservation. When the seasons change, I do this:

1. Lubricate the Ramp: Every spring and fall, I clean the ramp tracks with a degreaser, then use a dry silicone lubricant like WD-40 Specialist Silicone on the hinges and rollers. Avoid grease or heavy oil, as it attracts dirt and grime.
2. Degrease the Floor: I tackle this in the fall. For concrete, I use Zep Industrial Purple Degreaser. It’s concentrated, so you dilute it. I apply it with a garden sprayer, scrub with a stiff-bristle push broom, and rinse thoroughly. A clean floor isn’t just for looks; it prevents dangerous slips.

Ventilation Requirements for Storing Fuel

Gasoline vapors are heavier than air and can pool in a closed garage. I am very cautious about this. Running an engine “just for a minute” to warm it up is a major risk. I have a hard rule: never start a combustion engine inside the garage, period.

For general air exchange, I prefer a passive vent system over powered fans for reliability. The goal is continuous, low-level airflow. In my last setup, I installed two lower wall louvered vents near the floor and two ridge vents along the roof peak. This creates a natural chimney effect, letting heavier fumes drift out. If your garage is fully sealed, this is a necessary upgrade.

Important Security Features

Your garage now holds a small fortune in vehicles and gear. Basic builder-grade locks won’t cut it. From my experience, layer your defenses.

Start with physical hardening of the main entry door. I replace the standard latch with a commercial-grade, single-cylinder deadbolt from Schlage or Medeco. Use 3-inch screws to secure the strike plate into the door frame stud, not just the trim.

Lighting is your best deterrent. Install bright, wide-angle motion-sensor lights on all sides of the garage. The Ring Floodlight Cam is a popular combo, but I’ve also had great results with a basic Heath-Zenith motion light paired with a separate camera.

For peace of mind, a wifi camera you can check from your phone is non-negotiable. I mount one inside, pointing at the main door and the toy hauler. The Eufy SoloCam S340 works well without a monthly fee. Seeing an empty, secure garage while you’re on vacation is worth the investment.

A Strong Warning on Fuel and Battery Storage

This is my strongest piece of safety advice. If your garage is attached to your house, do not use it for long-term storage of fuel cans or charged lead-acid batteries (like ATV or generator batteries).

The risk of fume accumulation or a battery off-gassing in an attached space is not worth the convenience. For fuel, use an approved, vented storage shed placed well away from structures. For seasonal battery storage, I use a detached storage locker with a battery tender. In an attached garage, the only batteries should be those actively in a vehicle that is used regularly.

Maximizing Space and Understanding Cost Impact

Once your toy hauler fits, the real work begins. That leftover space is prime real estate for your other gear, and you need a plan to keep it all accessible.

My Shop-Tested Organization System

I treat the perimeter and ceiling of my garage as a 3D puzzle. The goal is to get everything off the floor, creating clear walking paths and making cleanup a breeze. Here’s the system I’ve settled on after years of trial and error.

For lightweight, bulky items like camping chairs, sleeping bags, and coolers, I install 18-inch deep steel shelves up high. I prefer the Husky brand heavy-duty shelving units because their bolt-together design is rock solid. Mount them high on the wall, just below the ceiling trusses.

Your ramps and leveling blocks are awkward. Don’t lean them in a corner. I use the Gladiator GearWall paneling with their specialized hook brackets. This keeps ramps flat against the wall, out of the way, and you can grab them without a wrestling match.

For kayaks, canoes, or even multiple bikes, a ceiling hoist is a game-changer. I’ve installed the Racor Pro series lift for canoes. For bikes, the simple pulley systems from Rad Cycle Products work perfectly. Just ensure you mount the hardware directly into ceiling joists, not just drywall.

What “Going Bigger” Really Costs

It’s tempting to just add a few more feet in every direction. I’ve made that sketch on a napkin too. But the price doesn’t increase evenly. The biggest cost drivers in a garage build are the foundation and the roof system, and both get exponentially more expensive as you span greater distances.

Let’s compare two common sizes. A standard 24-foot by 24-foot two-car garage is a great benchmark. Moving up to a 30-foot by 40-foot space to comfortably fit a larger hauler and workshop is a massive jump, especially when compared to a three-car garage. You’re not just adding 50% more square footage.

You’re moving from a simple slab to a much larger concrete pour with more site prep. You’re moving from standard roof trusses to engineered trusses with a much wider span, which costs more for materials and labor. In my experience, that size increase can often double or even triple the total project cost, not just add 50% more.

Where to Splurge and Where to Save

Based on my own garage build and helping clients, I have strong opinions on budget allocation. Spend your money where it fights wear and tear every single day.

Splurge on the garage door and opener. Get an insulated, steel-back door (like from Clopay or Amarr) with a belt-drive opener (I use LiftMaster). The door seals better, is more secure, and the quiet opener is worth every penny. This is your garage’s primary moving part-don’t cheap out.

Splurge on the floor. A plain concrete slab will stain from oil and degrade. I applied a two-part epoxy coating (I used Rust-Oleum RockSolid) myself. It’s a weekend of messy work, but it creates a surface that wipes clean and handles chemical spills. It’s the foundation for everything else.

You can save on interior finishes. You don’t need finished drywall. Oriented Strand Board (OSB) or even exposed studs are fine for a workshop. Paint it white if you want more light. Fancy lighting fixtures are unnecessary; simple LED shop lights from a brand like Barrina provide fantastic, shadow-free light for a fraction of the cost.

Setting Realistic Size Expectations

In researching, you might see figures for massive spaces. Let’s be clear: a garage floor that measures 150 feet by 120 feet is an 18,000 square foot warehouse or commercial repair bay. That scale involves zoning, commercial building codes, and a budget most homeowners will never encounter. For context, when we talk about garage space square footage, it’s about how the footprint translates to usable room and access. A larger footprint isn’t always better if you can’t move around or store what you need. For a residential toy hauler garage, a practical maximum for most properties is in the 40-foot by 60-foot range, and even that is a very large, custom build.

FAQ: Toy Hauler Garage Sizing & Setup

Do I need a special garage door for a toy hauler?

Yes. Standard residential doors are too short and weak. You need a commercial-grade door: either a heavy-duty high-lift sectional door (with 2-inch thick, 25-gauge steel panels) or a commercial roll-up door. Ensure the opener is a 3/4 HP or 1 HP system with a rail long enough for the door’s full travel height.

How do I account for the rear ramp when planning garage space?

You must plan for both the ramp’s extended length and its slope. Measure the height difference from your garage floor to the driveway. For safe loading, ensure you have at least 2 feet of clear driveway space beyond where the ramp touches down. A steeper angle from a short ramp risks scraping your equipment, especially if it’s used alongside stairs in your garage.

What are the ventilation requirements for storing a toy hauler with fuel?

Passive ventilation is key for safety. Install lower wall louvers and ridge vents to create a natural airflow that disperses heavier-than-air fumes. Good ventilation also helps prevent moisture buildup in the garage. It reduces the risk of moisture-related fumes and protects metal surfaces from rust. My non-negotiable rule: never start a combustion engine inside the garage. For attached garages, do not store fuel cans long-term.

What security features are important for a toy hauler garage?

Layer your defenses. Physically harden the man-door with a commercial-grade deadbolt using 3-inch screws. Install bright, wide-angle motion-sensor lighting on all exterior sides. For monitoring, a Wi-Fi camera inside, pointed at the entry and your rig, provides essential peace of mind and is non-negotiable.

How can I maximize space for the toy hauler and other items?

Use the perimeter and ceiling. Install heavy-duty steel shelving high on walls for bulky gear. Use panel systems (like Gladiator GearWall) to store ramps and leveling blocks flat against the wall. For kayaks or bikes, use a ceiling hoist system mounted directly into the ceiling joists.

What are the cost implications of building a larger garage for a toy hauler?

Costs increase exponentially, not linearly. The foundation (concrete, rebar) and roof system (engineered trusses for wide spans) are the biggest cost drivers. Jumping from a 24×24′ to a 30×40′ garage can often double or triple the total project cost, not just add 50% more.

Final Thoughts on Sizing Your Toy Hauler Garage

Based on my years of installing doors and organizing workshops, the most critical step is to measure your toy hauler’s exact dimensions with all racks and hitches attached, then add at least two feet of clearance on all sides for safe movement and maintenance. Remember these key points: always verify the total height, including any air conditioning units or satellite dishes; ensure your garage door is both wider and taller than the hauler’s broadest point; leave space along the walls for tool storage and a workbench; and plan for future hauler upgrades that might need more room.
