How Do I Install a New Garage Door Opener Safely?

Installing a new garage door opener can feel daunting, worrying about safety and complex wiring, but I’ll walk you through the clear, step-by-step process I use on the job.

This guide will take you from unboxing to testing, covering prepping your garage, handling the electrical connections, and providing model-specific tips for LiftMaster, Chamberlain, and Genie openers.

I’ve installed and serviced hundreds of these units, working directly with the models you likely have on your workbench.

The Garage Log’s Installation & Setup Guide

I’m here to talk you through this because I’ve hung more of these units than I can count in client garages. My goal is to give you one clear, safe walkthrough that covers the common steps for LiftMaster, Chamberlain, and Genie belt and chain-drive openers. While each model has its own quirks, the core installation is remarkably similar.

DIY Difficulty & Time Estimate

I rate this job a 5 out of 10. It’s very doable for a careful homeowner. Plan for 4 to 6 hours of active work if you’re doing it alone. Having a helper for about 30 minutes to hold the opener unit while you bolt it to the ceiling bracket makes the process much smoother and safer.

Step 1: Safety First – Disconnect Everything

This is non-negotiable. Unplug the old garage door opener from the electrical outlet. Next, locate the emergency release cord (the red handle on a rope) and pull it to disconnect the door from the opener carriage. You should now be able to lift the garage door manually. Do this a few times to make sure it moves smoothly and is balanced. A door that’s hard to lift or doesn’t stay put when opened halfway has spring issues, and you must call a professional before installing a new opener.

Step 2: Remove the Old Opener (If Present)

Using your socket set, unbolt the old powerhead (the motor unit) from its ceiling bracket or mounting hardware. Have a helper support its weight. Disconnect the rail from the header bracket above the door. Lower the entire assembly carefully. This is a great time to clear out cobwebs and dust from the mounting area.

Step 3: Assemble the New Opener Rail

Lay out all the new parts on a clean tarp or cardboard. Most openers require you to connect the long rail to the short curved section (called the J-rail) using the provided bolts. I always use my Husky socket wrench here instead of a screwdriver-it gets the bolts much tighter. Do not fully tighten these connecting bolts yet; you’ll need a little flexibility when aligning the whole rail later.

Step 4: Install the Header Bracket

This metal bracket mounts to the wall above your garage door. Hold it centered above the door and use your 4-foot level to make sure it’s perfectly horizontal. Mark the bolt holes. If you’re drilling into wood, your DeWalt drill is fine. If you hit concrete above the door header, you’ll need a hammer drill. I keep a Milwaukee M18 Fuel hammer drill for this exact job. Secure the bracket with the provided lag bolts, or upgrade to 3-inch lags if the ones in the box seem short.

Step 5: Mount the Powerhead and Attach the Rail

This is the two-person part. Attach the ceiling mounting bracket to the powerhead as per your manual. Have your helper lift and hold the powerhead in its desired location, usually centered in the garage about 2-3 feet back from the door. While they hold it, secure the bracket to the ceiling joists with lag bolts. You must bolt into solid wood joists, not just drywall. Next, connect the open end of the assembled rail to the header bracket, again keeping bolts just snug for now.

Step 6: The Critical Alignment

With the rail attached at both ends, this is the most important step. Have your helper hold the rail level where it meets the powerhead. Look down the entire length of the rail. It must be straight and level. I clamp my 4-foot level directly to the rail to check. Once it’s perfect, secure the rail to the powerhead with the final bolts and then go back and fully tighten every connection bolt along the entire rail.

Step 7: Install the Door Bracket and Connect the Arm

This is the bracket that bolts to the top of your garage door. Follow the manual’s measurement for height, usually a few inches below the top of the door. Use the provided bolts and lock washers. Then, connect the straight arm (the trolley) from the opener carriage to this door bracket. Leave the connection bolts hand-tight.

Step 8: Wiring and Sensors

Run the provided wire from the powerhead down the rail and wall to the back of the wall console button location. Use wire staples. Install the safety sensors on each side of the door, about 6 inches off the ground. They must be aligned perfectly-when aligned, the indicator lights will stop blinking and stay solid. Use your wire strippers and the included wire nuts for all connections, and always follow your local electrical code.

Step 9: Programming and Force Adjustment

Plug in the opener and follow the manual to program your remotes and keypad. Then, run the door through a full cycle. It will likely not open or close completely. This is normal. You now must adjust the “travel limits” and “force settings” using the buttons on the back of the powerhead. Adjust the force down to the lowest setting that still reliably closes the door; a door that reverses on a 2×4 on the floor is safer than one that crushes it.

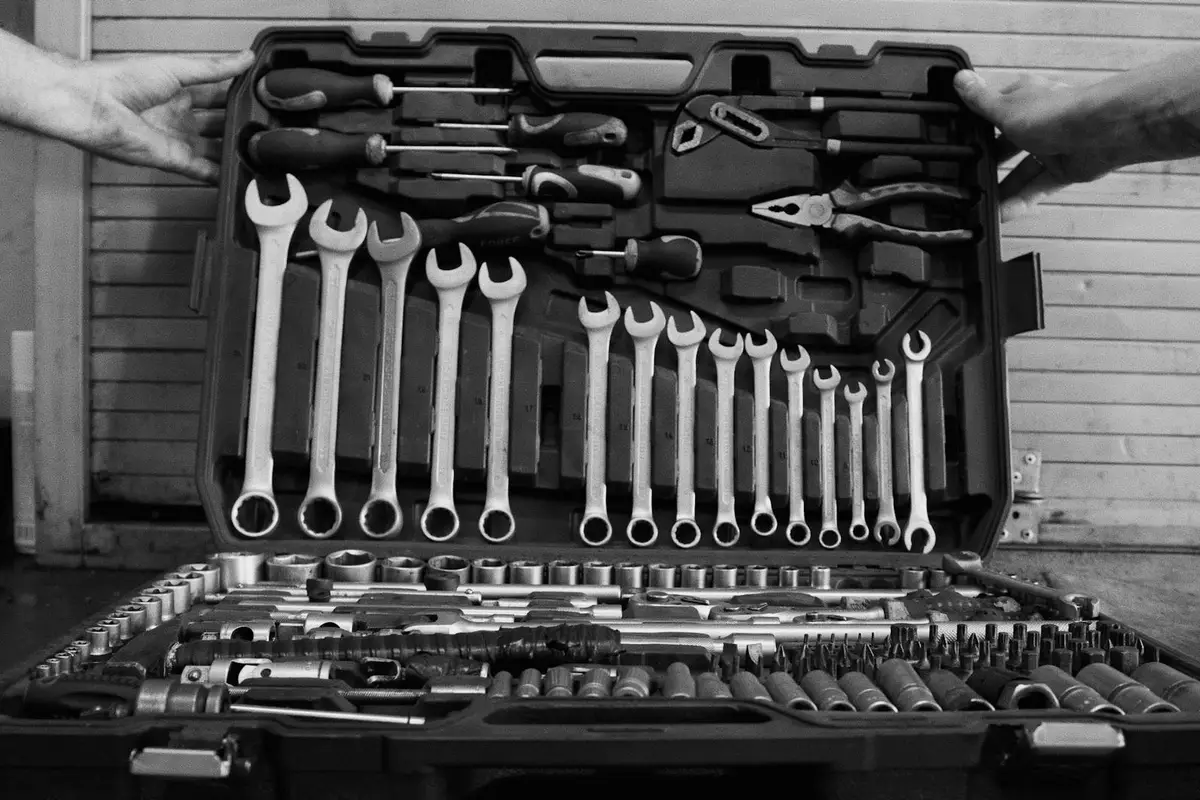

Gear Up: Your Tools and Workspace Checklist

Having the right tools staged before you start is 80% of a smooth job. Here’s exactly what I pull from my truck for an opener install.

Basic Hand & Power Tools:

• Cordless Drill/Driver: I use a DeWalt 20V Max. The clutch prevents over-tightening small screws.
• Hammer: A 16-ounce Vaughan is my go-to for tapping brackets into place.
• Socket Wrench Set: A Husky mechanics set is perfect. You’ll need both SAE and metric, usually 1/2″, 9/16″, and 7/16″ sockets.
• Screwdrivers: #2 Phillips and a 1/4″ flathead.
• Adjustable Wrench: For tightening nuts on the door bracket.
• Locking Pliers (Vise-Grips): These are a lifesaver for holding a bolt in place while you tighten the nut on the other side.

Specialty Items You’ll Be Glad You Have:

• A 4-foot Level: Critical for aligning the header bracket and the main rail. A 2-footer just isn’t long enough for this job.
• A sturdy Stepladder: A 6-foot folding ladder gives you safe reach.
• Wire Strippers: For clean connections at the wall console and sensors.
• Magnetic Parts Tray: Keeps all the small bolts, nuts, and washers from getting lost in the driveway gravel.

The Gearhead’s Checklist:

• Hammer Drill: If your header is concrete or masonry, a rotary hammer like my Milwaukee will save you an hour of frustration.
• 3-inch Lag Bolts: The ones supplied for the header bracket are often too short for a solid bite into the wood header.
• Wire Nuts & Electrical Tape: The kit includes some, but I always bring extra for secure connections.
• Safety Glasses: When drilling overhead, debris falls straight toward your eyes.
• Work Globs: Protects your hands from sharp metal edges and grease.

The First, Most Critical Step: Safety and Door Balance

Before you touch a single bolt on your new opener, we have to talk about safety. I’ve seen too many DIY projects go sideways because someone skipped the basics. Treating this step seriously isn’t just about protecting your opener-it’s about protecting you.

Power Down and Disconnect

Your first move is to make the entire system safe to work on.

1. Locate the circuit breaker that controls your garage and flip it to the OFF position.
2. For absolute certainty, I plug a small lamp or radio into a garage outlet to confirm the power is truly off. A non-contact voltage tester, like the one from Klein Tools I keep in my pouch, is my go-to for checking the opener’s power cord.
3. Now, find the emergency release cord on your old opener. Pull it down firmly to disconnect the trolley from the door. You should be able to lift the door freely by hand.

You should never, under any circumstances, begin working on or installing an opener with the garage door still connected to the power or the old unit. A door that suddenly engages is a serious hazard. If you’re considering a DIY garage door opener project—installing or replacing a unit—review safety guidelines first. Our resources on installing or replacing a garage door opener can help you plan safely.

How to Test Your Door’s Balance

A new opener will struggle and wear out quickly if your door is unbalanced. All the force to lift that heavy door comes from the springs, not the opener motor. Here’s the simple shop test I use on every service call.

1. With the door disconnected from the opener, lift it manually about halfway up-roughly to the height of your chest.
2. Let go. A properly balanced door will stay right where you left it. It shouldn’t drift up toward the ceiling or slam down to the floor.
3. If it does move on its own, the spring tension is incorrect.

This “lift to halfway” test is the quickest way to know if your door is ready for a new opener or if you need to call for spring service first. An unbalanced door puts immense strain on any opener and is a safety risk.

The One Rule You Must Not Break

If your balance test fails, you’ll be tempted to adjust the springs yourself. Do not do this.

Torsion springs (the big coil above the door) store a dangerous amount of kinetic energy. I use special winding bars for this job, and even with years of experience, I treat every spring adjustment with extreme caution. A slipping winding bar can cause severe injury or property damage. Understanding the dangers of garage door spring replacement underscores why this work should be left to a professional. DIY attempts can escalate risk and lead to costly damage. Spring adjustment and replacement is a job for a trained professional, full stop. Call a certified technician.

How do I ensure the garage door is properly balanced before installing the opener?

You ensure it’s balanced by performing the manual test I just described. It’s the definitive check. Think of it like checking your car’s tire pressure before a long trip-it’s a basic bit of prep that prevents bigger problems. If the door stays put at the halfway point and moves smoothly up and down with reasonable effort, your springs are doing their job. If not, the installation stops here until a pro corrects the spring tension.

Prepping the Battlefield: Removing the Old Opener

Before you get your shiny new opener, you need to clear the old one out safely. This is the most critical phase of how do I replace a garage door opener. Rushing here can lead to injuries or damage.

Your Safe, Step-by-Step Removal Sequence

Follow this order every time. I keep a checklist on my phone because even after hundreds of jobs, it’s easy to skip a step when you’re in a hurry.

1. Disconnect the Power. This is non-negotiable. Unplug the opener unit from the outlet. If it’s hardwired, you must shut off the correct circuit breaker at your main panel. Use a non-contact voltage tester on the unit’s wires to double-check they’re dead.
2. Detach the Rail from the Door. Pull the emergency release cord (usually a red handle) to disconnect the trolley from the door carriage. This lets you move the door by hand. Now, unbolt the rail bracket from the top of the garage door. I use a 9/16″ socket for this on most models. Have a helper hold the rail steady so it doesn’t swing down.
3. Support the Motor Unit. The motor and rail assembly is heavy and awkward. Before you unbolt it from the ceiling, set up a temporary support. I use a scrap 2×4 on a stepladder or a second person to hold the weight. This prevents it from falling and tearing out your ceiling drywall.
4. Unbolt and Lower the Unit. With the weight supported, remove the bolts or lag screws securing the mounting bracket to the ceiling joist. Carefully lower the entire assembly. You’ll now have the old opener in your hands and the rail disconnected from the door.

A Critical Pre-Disconnect Step

Before you touch any wires at the old wall control panel, get a roll of painter’s tape and a marker. Label every wire coming from the wall with the terminal it’s connected to on the old unit (e.g., “White to Red,” “Black to Yellow”). I learned this the hard way on an early job, tracing wires for an extra hour. Modern openers like LiftMaster and Genie often use the same color codes, but this five-minute task eliminates all guesswork for your new installation.

Responsible Disposal of the Old Unit

You can’t just toss an old opener in the trash. It has metal, electronics, and sometimes a sealed lead-acid battery. I take mine to a local scrap metal yard-they’ll often take the whole unit for recycling and sometimes even pay you a few dollars for the steel. Your municipal waste facility likely has an e-waste drop-off point, too. It’s a small step for you, but it keeps harmful materials out of the landfill.

Installing a LiftMaster or Chamberlain Opener

LiftMaster and Chamberlain openers are very similar in how they install. Many parts and steps are interchangeable. I’ve put in dozens of both, and this process works for most belt-drive and chain-drive models from these brands.

Step 1: Assembling the Rail and Motor Unit on the Ground

Clear a space on your garage floor and lay out every part from the box. Check them against the manual’s parts list. I do this first so I’m not hunting for a bolt halfway through.

Follow the manual to connect the rail sections to the motor unit. On Chamberlain models, the rail often snaps together. Push each section firmly until you hear a distinct click. Lay the assembled rail on the floor and sight down its length to make sure it’s perfectly straight. A crooked rail will make the door jerk and wear out quickly.

Here’s a tip from my toolbox: if your manual recommends it, lightly grease the inside channel of the rail before you lift it up. I use a silicone spray like WD-40 Specialist. It keeps the trolley moving quietly and prevents that dry, grinding sound in the first year.

Step 2: Mounting the Header Bracket and Hanging the Opener

Find a ceiling joist above where the opener will sit. Use a stud finder. The header bracket must screw directly into solid wood. If a joist isn’t in the right spot, you must use heavy-duty toggle bolts. I only use Toggler Snaptoggle bolts for this; they’re rated for overhead weight and won’t pull out of drywall.

Hanging the motor unit is a two-person job, but you can do it alone with a trick. Set a step ladder under the mounting spot. Take a sturdy board, like a 2×4, and rest it across the ladder steps to create a temporary shelf. Lift the opener and set its motor casing on this board. This holds the weight so you can use both hands to secure the hanging brackets to the ceiling. I’ve saved my back many times doing it this way.

Step 3: Attaching the Door Bracket and Connecting the Trolley

Look at the top section of your garage door. Mount the door bracket right in the center. Use the provided lag screws and drill them in with a cordless drill. I use my DeWalt 20V drill with a socket adapter; it has the power to drive these screws without stripping the heads.

Before you connect the trolley, tie the emergency release cord to the bracket. Make sure the cord’s handle hangs down within 6 feet of the floor. Then, slide the trolley from the rail onto the door bracket. You’ll feel it lock into place. Give it a gentle tug to confirm it’s secure.

Step 4: Wiring the Wall Control and Safety Sensors

Run the thin wires from the motor unit to the wall control pad and down to the safety sensors. Keep wires tidy by clipping them to the ceiling and wall every foot or so. I use plastic cable clips from Gardner Bender. They’re cheap and you can push them in with your thumb.

Mount the safety sensors on each side of the door, about 6 inches up from the floor. The most common mistake is misaligned sensors. They must face each other directly to “see” each other. When aligned, the indicator lights on both sensors will be solid. If a light is blinking, the beam is broken-gently adjust the sensor until both lights stay solid.

Step 5: Programming and Fine-Tuning the Limits

To program your remote controls and wireless keypad, find the “learn” button on the back of the motor unit. Press it. The light will turn on. Within 30 seconds, press the button on your remote you want to use. You’ll hear a click or see the light flash to confirm. For a keypad, just enter your chosen code and press enter. If you ever need to reset or change the keypad code, use the program reset option. The next steps cover the keypad code reset procedure.

Now, set the travel limits. Think of this as teaching the door where its top and bottom are. Use a flathead screwdriver on the adjustment screws labeled “UP” and “DOWN” on the motor. Press the wall button to make the door move. Adjust the “UP” limit screw until the door stops exactly where you want it fully open. Then, adjust the “DOWN” screw so the door presses snugly onto the weatherstrip at the bottom.

Next, set the force. This controls how hard the opener pushes and pulls. It’s like setting the grip strength. There are usually two settings: up force and down force. Turn the adjustment screws until the door reverses smoothly if it hits something. Test the down force by placing a piece of 2×4 lumber on the floor under the door. Close the door; it should stop and reverse when it touches the wood.

Log Entry Pro-Tip: I once set the down-limit too high on an installation. The door didn’t seal against the concrete floor, and my client’s garage was drafty all winter. Always test the seal by closing the door and trying to pull a dollar bill out from under it. If the bill slides out easily, your down limit needs one more small adjustment.

How do I program the remote controls? Press the learn button on the motor, then press the button on your remote. How do I set the travel limits? Use the adjustment screws while the door is moving, and stop when it reaches the correct position.

Installing a Genie Garage Door Opener

Genie openers, especially their Intellicode models, are a solid choice for many homeowners. I’ve installed dozens of them. The main thing you’ll notice compared to a LiftMaster is the drive system. Genie is well-known for its screw-drive models, which operate a bit differently than the belt or chain drives you might be used to.

Step 1: Rail Assembly for Screw-Drive and Chain-Drive Models

You’ll either have a solid metal rail with a threaded screw running through it or a linked chain-drive rail. The screw-drive system is stiffer. It’s also noticeably louder-it has a distinct grinding hum-but that solid screw tends to need less adjustment over time than a chain that can stretch. If your model is a screw-drive, check the manual to see if it recommends lubricating the drive screw; a light coating of white lithium grease on the threads every few years keeps it running smoothly. For assembly, just follow the numbered steps in the manual to connect the rail sections; it’s very straightforward. Make sure all bolts are tight.

Step 2: Mounting the Power Head and Door Bracket

Genie uses a specific ceiling bracket kit. It’s usually a metal plate that bolts to a ceiling joist. You then hang the motor unit on it before securing it permanently. The critical part here is getting the rail perfectly level before you lock everything down. Use a long spirit level. If the rail slopes even slightly, it puts extra strain on the motor. The door bracket, often called a J-bracket, is universal. You attach it to the top section of your door, centered, just like with other brands. I use a 9/16″ socket or wrench for this.

Step 3: Wiring Up: Sensors and the Wall Console

Genie keeps the wiring simple. The safety sensors use a basic two-wire connection. Run the wires from each sensor back to the motor unit, staple them neatly to the wall or ceiling every couple of feet, and plug them in. The colors don’t matter, but you must pair them correctly-one wire to each terminal. The wall console also wires directly to the motor head. A handy feature on most Genie consoles is the lock button, which disables all remotes for extra security when you’re on vacation.

Step 4: Programming a Genie Intellicode Opener

This is where people often have questions. First, find the “learn” button. On most Genie Intellicode openers, it’s a small, recessed button on the back of the motor unit, not a colored one on the side. To program a remote, press the learn button once-you’ll see a light blink-then within 30 seconds, press the button on your handheld remote. The light will blink again to confirm. This same process is the answer to “can you reprogram a genie garage door opener”-just press the learn button to clear old codes and start fresh. If you need to reset garage door opener codes completely, this method will do it. In the next steps, we’ll show how to finalize a full reset and re-pair remotes.

Setting the travel limits is different. You usually hold down the arrow buttons on the wall console itself. Hold the “up” button until the door reaches the height you want, then release. Do the same for the “down” position until the door seals firmly on the floor. Test it a few times to make sure it stops exactly where you want it.

Belt, Chain, or Screw? What Your Drive Type Means for You

Choosing your opener’s drive type is the first big decision. It determines the noise level, how much upkeep you’ll do, and how the rail goes together. I’ve installed hundreds of each kind over the years, and each has its best-use case.

The Workhorse: Chain-Drive Openers

A chain-drive system uses a metal chain, much like a bicycle chain, to pull the trolley that moves your door. This is the classic, durable choice I recommend for detached garages or situations where budget is the primary concern. They are powerful and can handle heavy doors year after year. The trade-off is noise. You’ll hear a consistent metal-on-metal clatter and rumble during operation.

From an installation perspective, the rail is straightforward. You’re essentially assembling a long metal track and threading a chain through it. I keep a set of Allen wrenches and a rubber mallet handy for this job to tap sections together without damaging the rails. While reliable, I suggest lubricating the chain with a garage door-specific silicone spray every six months to keep it quiet and prevent wear.

The Quiet Neighbor: Belt-Drive Openers

Instead of a metal chain, these use a reinforced rubber belt. For any garage attached to your house, especially with rooms above or beside it, a belt-drive is the only considerate choice. The operation is whisper-quiet-often the loudest sound is the door itself moving on its rollers. Brands like LiftMaster and Chamberlain have perfected this technology, and it’s what I install in my own home.

Installing a belt-drive is nearly identical to installing a chain-drive model. The rail assembly is the same; you just thread a flexible belt instead of a chain. It requires less initial lubrication. When you compare chain-drive vs belt-drive openers, noise and maintenance are the key differences to weigh. The belt-drive option often proves quieter and smoother, justifying the higher upfront cost. The main difference you’ll notice is the higher upfront cost, which you pay for that lasting peace and quiet.

The Low-Maintenance Option: Screw-Drive Openers

A screw-drive opener uses a threaded steel rod. A rotating nut on the trolley travels up and down this rod to move the door. This design has the fewest moving parts, which translates to very little required maintenance and consistent performance in areas with big temperature swings. They are quieter than chain-drives but have a distinct mechanical whirring sound.

Installation is where this type differs. The rail is the threaded rod itself, so it comes as one long, rigid piece. This can be awkward to handle in a single-car garage by yourself. You need to be extra careful during installation to ensure the rail is perfectly straight and level, as any bend can cause binding. Genie has been a leader in this style for decades. They work well, but I find the rail assembly less forgiving than the sectional rails of belt or chain systems.

What This Means for Your Installation

You asked about the key installation differences. Here’s the practical breakdown:

• Noise: Your choice here is the biggest factor. Go belt-drive for quiet, chain for durable noise, screw for a middle ground.
• Maintenance: Chain-drives need regular lubrication. Belt and screw-drives need almost none, which is a win for most homeowners.
• Rail Assembly: Chain and belt rails are multi-piece and easier to maneuver alone. The one-piece screw-drive rail is more cumbersome and requires precise alignment from the start.

No matter which you pick, the core safety steps-mounting the motor unit securely to the ceiling, aligning the safety sensors, and setting the force limits-remain exactly the same. Your drive type changes the experience, not the fundamentals of a safe setup.

The Final Check: Testing Safety and Function

Before you put your tools away, you have one critical job left. You must test everything. I never skip this step in my own shop, and you shouldn’t either. A proper test ensures your family’s safety and confirms your hard work was done right.

Follow this final test sequence in order, and don’t rush through it.

Step 1: The Visual and Manual Inspection

First, with the opener disengaged, open and close the door by hand. It should move smoothly with balanced resistance. Listen for any scraping or binding sounds you didn’t hear before. Look at all your new hardware connections. Are any bolts or screws loose? Are the safety sensor wires neatly secured and not hanging where they could get caught? This two-minute check can prevent a headache later.

Step 2: Test Operation with the Wall Control

Re-engage the opener with the red emergency release cord. Stand clear of the door and press the “close” button on your wall-mounted control. Watch the door travel. It should move steadily without jerking. Press “open” and watch it rise evenly. I always do this three or four times to make sure the travel limits I programmed are consistent.

Step 3: Pair and Test Your Remotes

Now it’s time for the convenience test. Program your handheld remote and any vehicle HomeLink or Car2U systems. The process is different for each brand. For a Chamberlain or LiftMaster, you’ll usually hold down the “learn” button on the motor unit until the LED light blinks, then press your remote button. For Genie, it often involves entering a specific code sequence. Once paired, test each one from inside your car in the driveway. If a remote doesn’t work, double-check the programming steps in your manual; the “learn” button sequence timing is often the culprit. If you’re specifically programming a Genie garage door opener remote, look for the Genie-specific walkthrough in the next section. The upcoming steps will include a direct link to the Genie programming guide to speed setup.

Mandatory Safety Test: The Reversal Feature

This is the most important test. Federal law requires all openers to reverse if they hit an object. To test it, place a solid piece of wood, like a 2×4, flat on the floor in the center of the door opening. I use a chunk of scrap lumber from my workshop. Close the door using the wall control. The bottom of the door must stop and reverse upward immediately upon touching the wood. If it doesn’t reverse, or if it tries to crush the wood, your force settings are too high. You must adjust the close force downward using the adjustment screws on the opener until the door reliably reverses on the 2×4. This protects a child, a pet, or a bike tire left in the way.

Mandatory Safety Test: The Photoelectric Eyes

Those little plastic sensors on either side of the door are non-negotiable. They create an invisible beam. If anything breaks that beam while the door is closing, the door must stop and reverse. Test them. Close the door and wave a broom handle, a rake, or even your leg through the beam path about 6 inches off the ground. The closing door should instantly stop and go back up. If it doesn’t, you have an alignment or wiring issue. First, check that the indicator lights on both sensors are solid (usually green). A blinking light means they are not aligned. Loosen the wing nut and adjust the sensor until the light goes solid.

What Should I Do If The Opener Does Not Respond After Installation?

Start with the basics. I always check these three things first. Is the unit plugged in securely at the outlet? Is the circuit breaker in your home’s electrical panel flipped on? Are the photoelectric sensors perfectly aligned with steady lights? Ninety percent of “no response” issues I see are solved right there. If those are good, verify that the emergency release cord is fully pushed in to engage the opener with the door.

Final Pro Tip: Test it Again Next Week

Hardware can settle, and settings can drift slightly in the first few cycles. Mark your calendar to run through the safety reversal and sensor tests one more time in seven days. It gives you total peace of mind. Once that’s done, you can confidently say you’ve installed a safe, reliable garage door opener.

Ongoing Care and Troubleshooting

A garage door opener is a tool, and like any good tool, it works best and lasts longest with a little regular attention. Setting aside 15 minutes every six months for basic maintenance can prevent 90% of common opener problems. You don’t need fancy gear, just a few shop basics.

Your Quick Maintenance Checklist

I do this every spring and fall. First, unplug the opener. Safety first, always.

• Lubricate moving parts. Use a dedicated garage door lubricant, like White Lightning Garage Door Lube. Spray a light coat on the chain or screw drive. For belt drives, I use a silicone-based spray on the pulleys only. Avoid WD-40; it’s a degreaser, not a long-term lubricant.
• Check fastener tightness. Grab a socket wrench and check the bolts securing the opener to the ceiling bracket and the rail to the header bracket. They can work loose over time from vibration.
• Inspect the safety sensors. Wipe the lenses with a clean, dry cloth. Make sure they are perfectly aligned; a door that won’t close is often just a sensor bumped a quarter-inch out of place.
• Listen and observe. Run the door through a cycle. Does it sound smooth, or is it grinding, jerking, or hesitating? Unusual noise is the first sign of a component wearing out.

Answering Common User Questions

You’ll have questions after installation. Here are the two I get asked most often.

Can you deactivate a lost garage door opener?

Yes, and you should do this immediately. A lost remote is a security risk. The process is called “clearing the code memory” or “erasing all remotes.”

1. Find the “LEARN” or “PROGRAM” button on the back or side of the opener motor unit. It’s usually colored yellow, red, or purple.
2. Press and hold this button for about 6-10 seconds until the indicator light next to it turns off or blinks in a new pattern. On my LiftMaster, the light blinks twice and then stays on.
3. Release the button. This erases all programmed remotes and keyless entry pads.
4. You must now reprogram every remote and keypad you still have by pressing the learn button once and then pressing the button on the remote within 30 seconds.

This process makes the lost remote a useless piece of plastic, as its unique code is wiped from the opener’s memory.

How do I replace a garage door opener remote?

It’s simpler than you think. First, you need a compatible remote. Check the opener manual for the model number, then buy a universal remote labeled for that brand (like Chamberlain or Genie) or a specific OEM replacement. I’ve had good luck with the universal remotes from Genie for basic functions. In the next steps, we’ll cover how to program garage door opener remote models for your setup.

1. On the opener motor unit, press the “LEARN” button once. The indicator light will illuminate or start blinking.
2. Within 30 seconds, press and hold the button on the new remote that you want to use.
3. Hold it until the opener’s light blinks or you hear a click. Release the button.
4. Test the remote. It should now operate the door.

If you’re adding a second remote, you don’t need to erase the others first. Just press the learn button and program the new one-the opener can store many codes.

Knowing When to Call a Professional

I fix openers, but I won’t touch torsion springs. That’s my hard line. If the problem is with the door itself-especially the springs, cables, or rollers-put the tools down and call a certified technician.

Torsion springs are under extreme tension and can cause serious injury if handled incorrectly. Other signs you need a pro include: the opener motor runs but the door doesn’t move, the door is crooked in its tracks, or you hear a loud *bang* from a broken spring. It’s not a DIY moment. The cost of a service call is far less than an emergency room visit.

Garage Door Opener Installation: Your Quick-Fire Questions Answered

What is the single most important safety check before I start?

Test your door’s balance manually. Disconnect it from any old opener, lift it halfway, and let go. If it doesn’t stay put, your springs are unbalanced and you must call a professional before proceeding. Installing an opener on an unbalanced door will destroy the new unit and is a major safety hazard.

What’s the one tool I shouldn’t skip buying for this job?

A 4-foot level. The short level from your toolbox is useless for ensuring the main rail and header bracket are perfectly straight. A long level is non-negotiable for preventing a jerky, misaligned door that wears out prematurely.

I’ve assembled the rail, but the door jerks. What did I do wrong?

You likely didn’t fully align and tighten the rail. Every connection bolt must be tight, and the entire rail must be perfectly straight and level. Sight down its length with a long level and re-tighten all bolts with a socket wrench, not a screwdriver.

The remote programs but the keypad won’t. What’s the fix?

First, ensure you are using the correct programming sequence-keypads often use a different button press count or timing than remotes. Double-check the manual. If it still fails, clear all codes from the opener’s memory and reprogram both devices from scratch, as a corrupted memory can cause this.

The door closes too hard on the floor. How do I adjust it without compromising safety?

Adjust the DOWN travel limit screw in small increments (quarter-turns) until the door gently seals on the floor. Then, immediately test the safety reversal with a 2×4. If it still reverses properly, you’re set. If not, increase the close force slightly, but only enough to allow the reversal test to pass.

Ensuring a Safe and Reliable Installation

From my years in the shop, the single most important piece of advice I can give is to never skip the final safety tests-your opener’s automatic reversal feature is the primary guard against injury or damage.

• Always reference the specific printed manual for your LiftMaster, Chamberlain, or Genie model; online videos can miss critical brand-specific steps.
• Use a reliable impact driver, like my go-to DeWalt 20V, to fasten the rail brackets directly into ceiling joists for a vibration-proof mount.
• Test the door’s balance manually after installation; if it doesn’t hold when lifted halfway, the opener will strain and wear out prematurely.
• Mark your calendar to inspect and lubricate the opener’s moving parts every six months with a dry, white lithium spray to ensure quiet, long-lasting operation.
